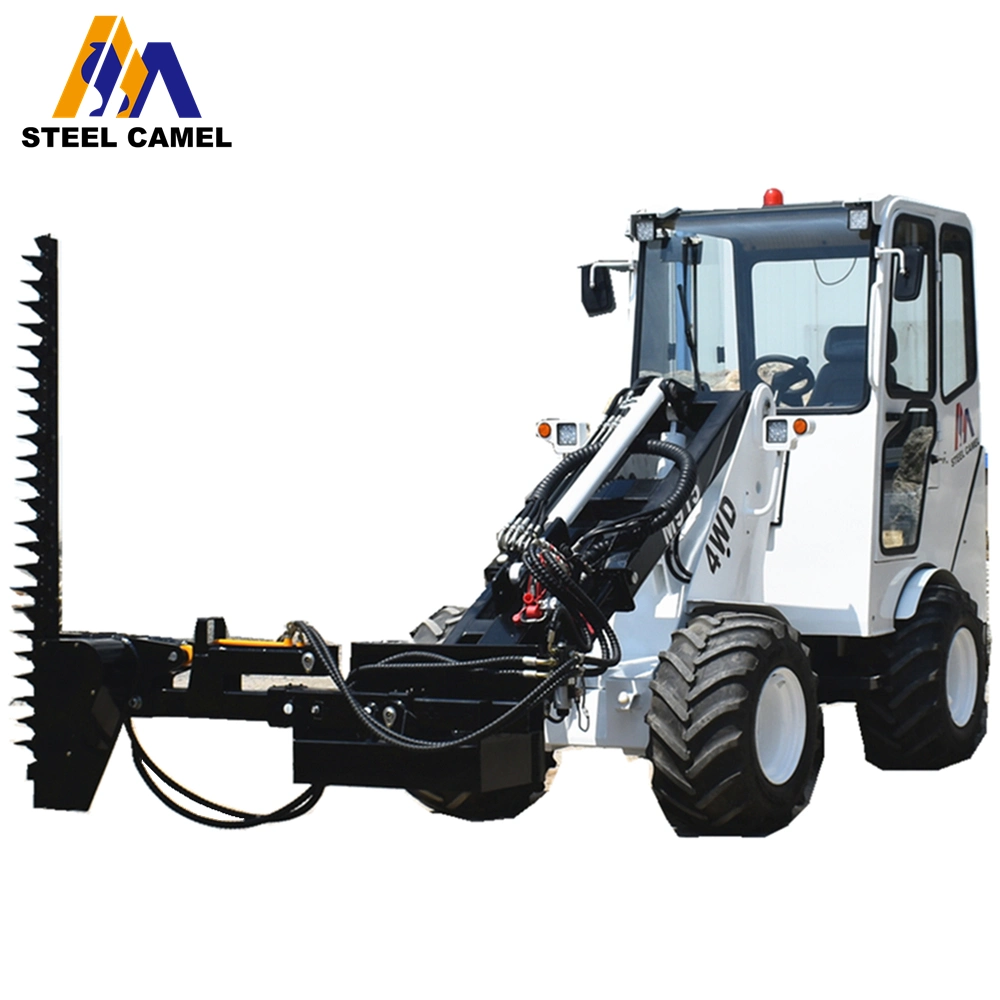

Garden machine small 4wd front end tractor loader M910 with hedge trimmer
Good Features of STEEL CAMEL M915 loader:
Multipurpose, both front ant rear end can hook some attachments
Hydrostatic 4 wheel drive, stepless speed change.
0~12~24km/h, two speed, efficient and powerful.
Telescopic boom with self levering, boom floating
Joystick control
Hydraulic quick hitch for various attachments
Flexible articulation, fantastic manuverability in rough terrain.
Up to 82L/min big output to attachments, powerful and efficient.
Loader technical data:
| Model | M915 multifunction telescopic wheel loader | |
| Dimension with cabin (LxWxH) | 3400X1500X2300mm | |
| Max. lifting height (boom retract) | 3000mm | |
| Max. lifting height (boom extend) | 3562mm | |
| Pulling force | 18kN | |
| Bucket capacity | 0.8cbm | |
| Max. loading capacity | 1500kg | |
| Min. turning radius | 2800mm | |
| Turning angle | 450 | |
| Min. ground clearance | 330mm | |
| Speed | 0-12~24 km/h | |
| Weight with bucket and counterweight | 2300 kg | |
| Standard tire | 31X15.5-15 | |
| Tire pressure | 2.8 bar | |
| Oil tank capacity | 80L | |
| Pressure | 200bar | |
| Working oil flow | 41L/minx2 | |
| Tracking oil flow | 120L/min | |
| Oil model(mineral oil) | L-HL46 | |
| Fuel tank capacity | 42L | |
| Battery | 60Ah, 12V | |
| Engine | Perkins 404D-22, 50hp, 4 cylinder, diesel | |
| Standard configuration: Closed cabin with heating and fan, hydraulic quick coupling, telescopic boom, boom floating, self levering, flexible articulation, standard bucket | ||
| Options | ||
| Open ROPS canopy | 3 point hitch with hydraulic pto | |
| Normal boom without telescopic | 8/16km/h two speed wheel motor | |
| Rear hydraulic output with separate control | Trailer hook | |
| 3 point hitch | Bobcat coupling plate | |
| Air conditioner | Multi-way couipler | |
Advantages of M915 multifunction wheel loader:
| Items | STEEL CAMEL loader | Other loader |
| Driving system | Full hydostatic 4WD One piston pump+4 hydraulic motors combine its driving system | Hydraulic/Mechanical driving Axle+torque converter+transmission shaft axle+gearbox motor |
| Working system | Twin pump for working devices Can choose the flow to be one pump's or twin pumps' | Single pump, no option |
| Independent system | Yes. The driving system and working system are independent closed system, can give max. output even when the loader is steady | No. The driving system and working system share some circuit, the output is relative with the driving speed |
| Boom | Telescopic | No-telescopic |
| Boom floating | Standard | Option for extra charge |
| Hydraulic quick coupling | Standard | Depends |
| Electric output on boom | Standard | Not available |
| Components | Perkins/Cummins engine, Italy pump and valves, UK seals | At most have an oversea engine, the rest are all local parts |
| Rear hydraulic output | Standard | Not available |
| 3 point hitch | Available as option | Not available |
| Tiltable cabin | Standard | Not availabl |
Loader+Tractor, one Multi-purpose helper for all your works

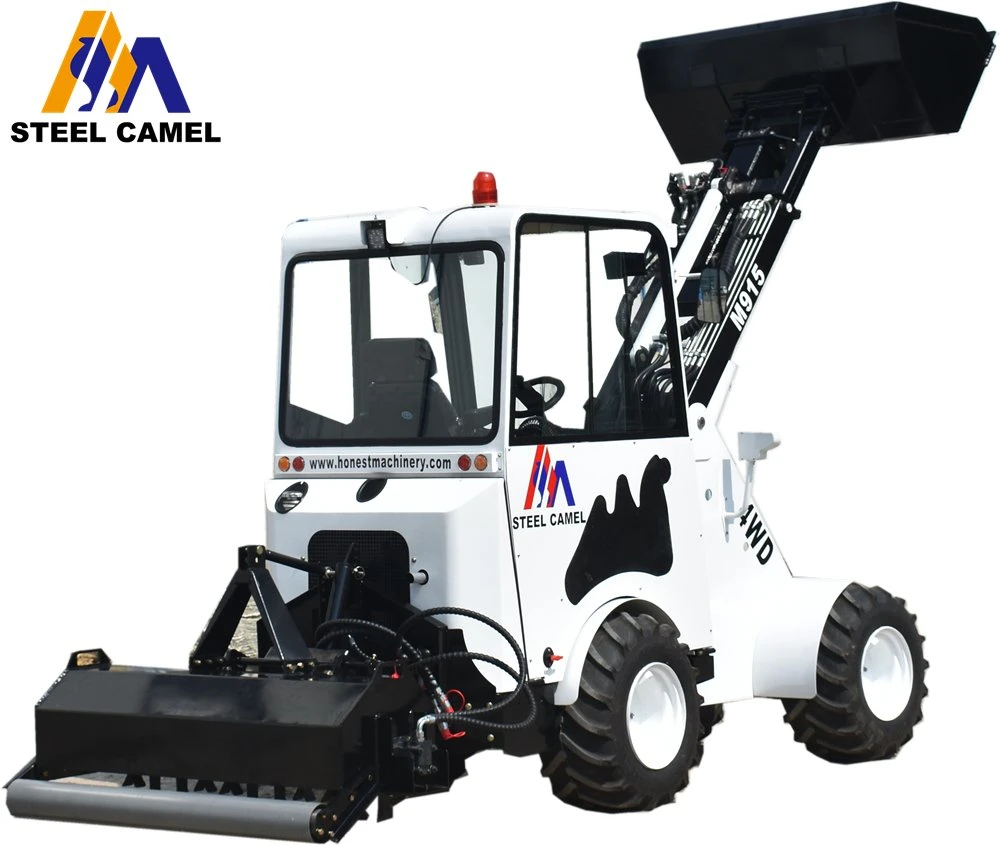

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.
Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.
STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
