1. Function feature and the principle of action.

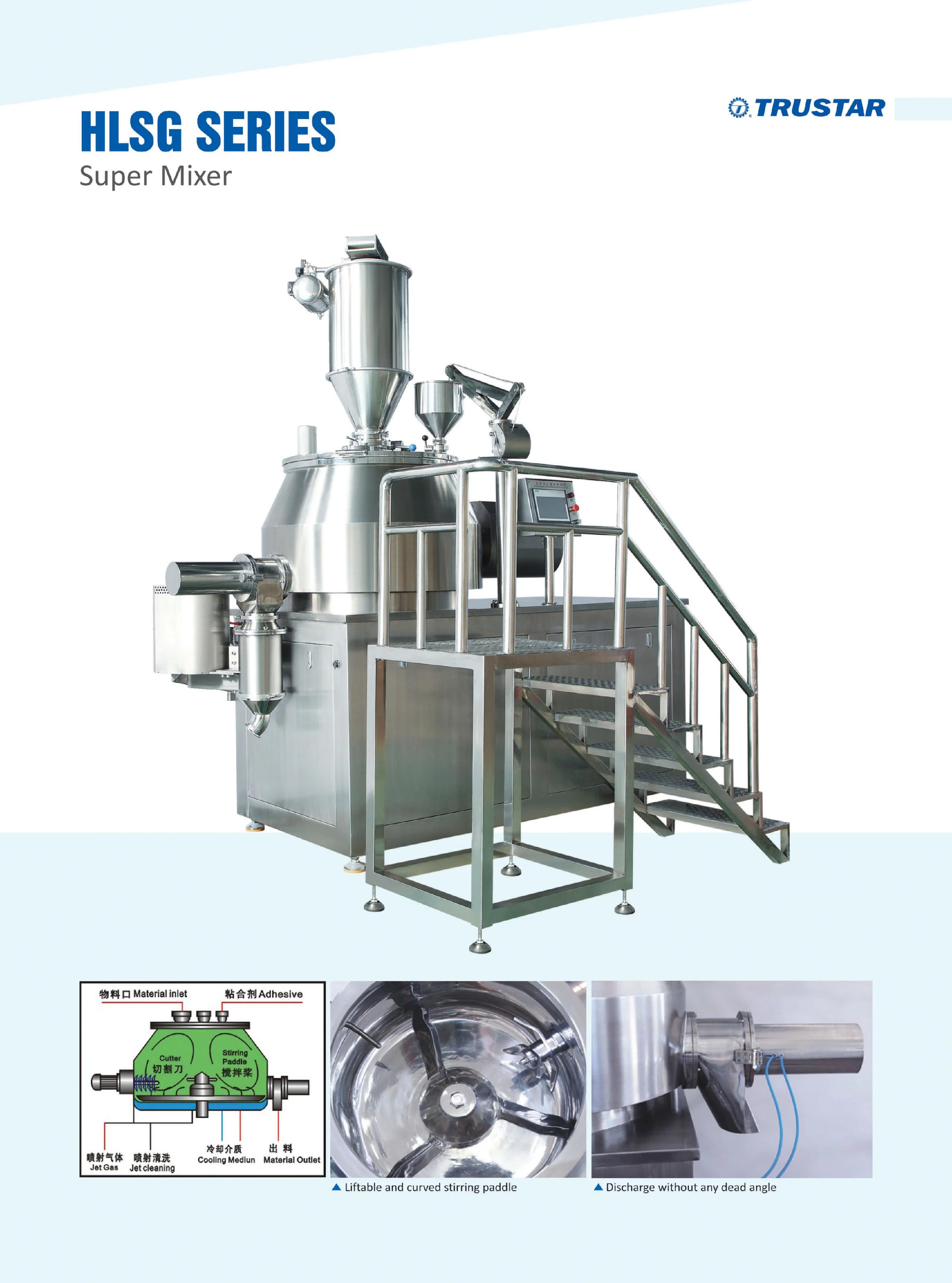

HLSG- Series high-efficiency wet mixing granulator is a new generation of granulating equipment recently developed by our company, which can finish the procedures of mixing, wetting, granulating one time, with effective granulation, in compliance with GMP standard.
2. Machine Specification:
| Model | HLSG-10 | HLSG-30 | HLSG-50 | HLSG-100 | HSLG-200 | HSLG-600 |
| Total Volume | 10L | 30L | 50L | 100L | 200L | 600L |
| Working Volume | 2-6L | 6-20L | 12-35L | 25-60L | 60-150 | 15-400L |
| Feeding Capacity | 1-3kg/Batch | 3-10kg | 8-20kg | 15-40kg | 50-140kg | 75-200kg |
| Working Time | Mixing: 2 minutes Granulating:7-14 minutes | |||||
| Finished Granule Size | Diameter: 0.14-1.5mm | |||||
| Mixing Motor | 2.2kw | 3.0kw | 5.5kw | 7.5kw | 15kw | 30kw |
| Mixing Rotating Speed | 50-500rpm | 50-500rpm | 40-400rpm | 30-300rpm | 30-260rpm | 25-220rpm |
| Granulating Motor | 0.75kw | 1.1kw | 1.5kw | 3.0kw | 4kw | 11kw |
| Granulating Rotate Speed | 50-3000RPM | |||||
| Machine Size | 1.28x0.53x1.32m | 1.45x0.53x1.34m | 1.75x0.60x1.62m | 1.76x0.60x1.66m | 2.18x1.06x2.15m | 2.98x1.2x2.5m |
| Machine Weight | 330kg | 400kg | 500kg | 800kg | 1350kg | 3880kg |
3. Machine parts
